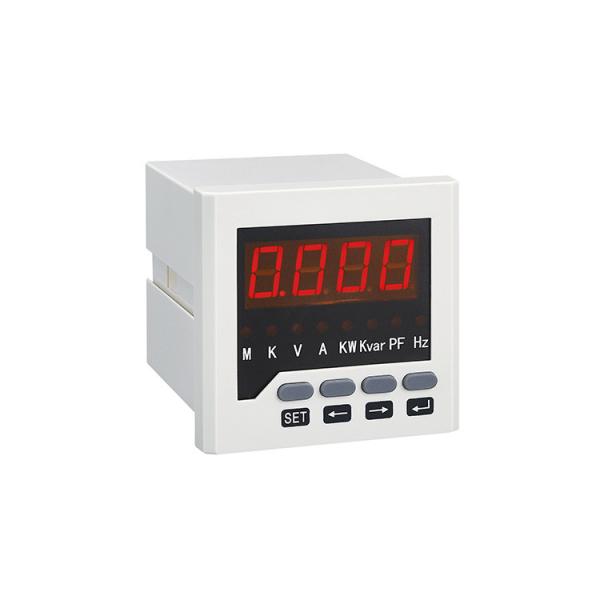

2022 Factory Cheap Price multi function digital power meter output 4-20ma

Name: 2022 Factory Cheap Price multi function digital power meter output 420ma
Brand: Gomelong
Price: 7.50 USD

China 2022 Factory Cheap Price multi function digital power meter output 4-20ma wholesale

Place of Origin : Zhejiang, China

Brand Name : Gomelong

Model Number : OML194E-SAY

Measuring Current Range : 0~9999A

Measuring Voltage Range : 0~500V

Accuracy Class : 0.5

Operating Temperature : -10~+55℃

Dimensions : 96*96mm

Display : LED Display

Key words : power meter

Frequency : 50/60 HZ

Overload : Permanent: 1.2 times; temporary: 2 times/10s

Operation range : AC220V or SMPS: AC/ 80~270V

Communication : RS-485, MODBUS-RTU protocol

Material : ABS

Measure : active/reactive power

Installation method : Embedded

Packaging Details : standard export

Port : Ningbo

Supply Ability : 50000 Carton/Cartons per Month

Price : $7.50 - $10.00/Pieces

Contact Now

2018 Factory Cheap Price multi function digital power meter output 4-20ma

Product Description

2022 Factory Cheap Price multi function digital power meter output 4-20ma

Product Description

Intelligent Digital Meter is suitable for monitoring and displaying electrical parameters of current in power grid and automation systems.It isa new design meter with advantages of high accuracy, good stability,and resistance to vibration.

LED multifunctional meters can accurately measure and display all the common electrical parameters of three phase power grid,such as three phase voltage and current,active power,inactive power ,power factor,frequency,active energy,reactive energy,communication interface and energy pulse output function.with MODBUS-RTU communication protocol,the meter can display by RS-485 remote digital communication.With features of convenient installation,easy wiring and maintenance ,programable at site etc.the meters can also proceed the networking communication between different PLC and industrial control computers among the industry

Technical data

Network	S Three phase
Rated current	AC5A or DC 75mV with shunt
Rated voltage	0-500VAC or 0-100VDC
Overload	Permanent: 1.2 times; temporary: 2 times/10s
Accuracy	Class 0.5
Frequency	45-65 Hz
Operation range	AC220V or SMPS : AC/DC 80~270V
Power consumption	≤ 5VA
Communication	RS-485, MODBUS-RTU protocol
Working temperature	-10~+55℃
